Tracked crushing and screening equipment designed by JTEC with over 30 years of experience — for quarrying, mining and recycling operators who want high output and low running costs.

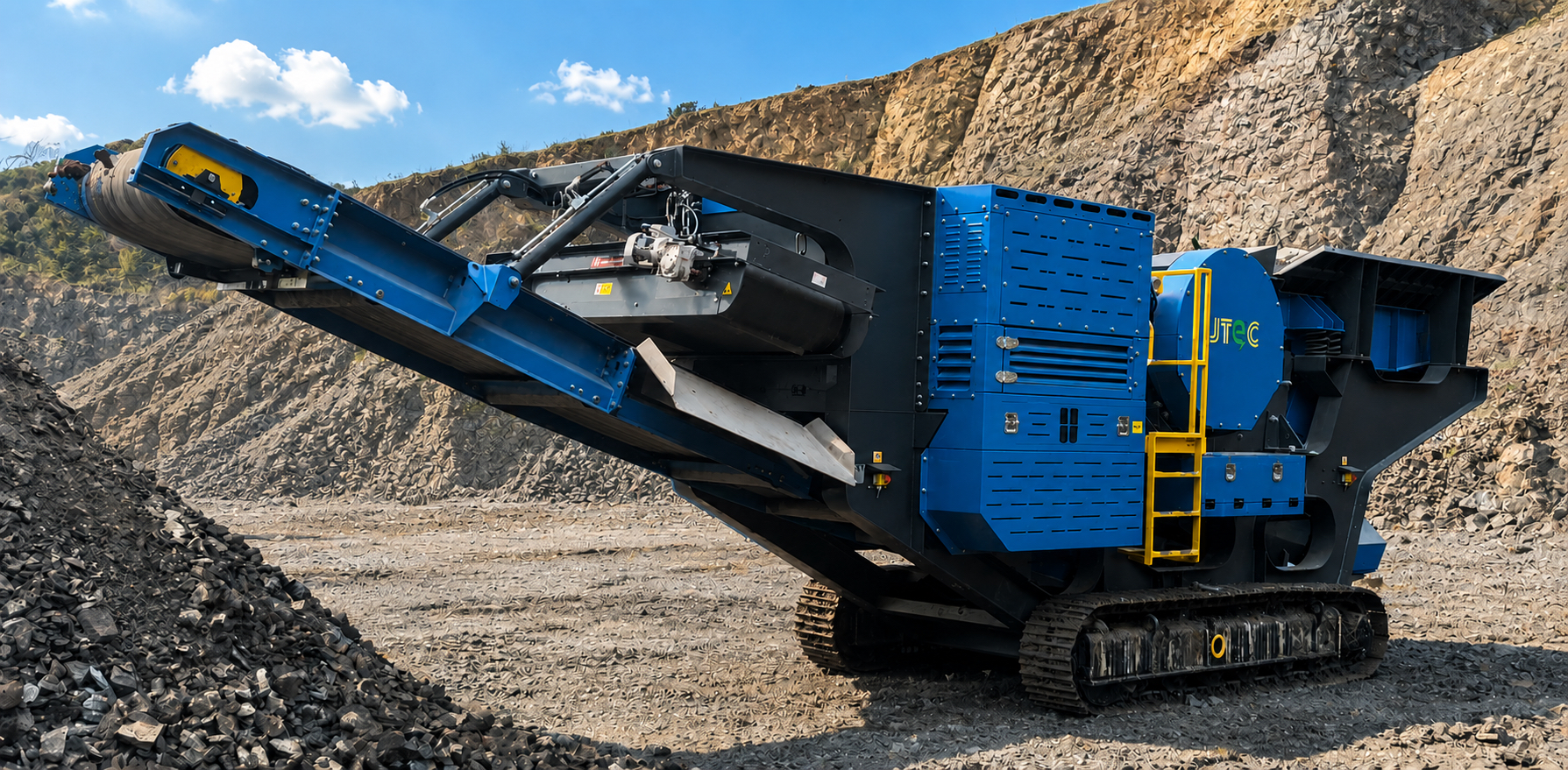

Jaw Crusher1063
Serious crushing power with seriously low running costs. A heavy-duty 1000 × 630mm jaw box, ultra-low fuel use and “Dual Power” so you can switch from diesel to your own electric supply.
- Reverse crushing action
- Overband magnet & side discharge conveyor
- Hydraulic drop-down main conveyor
- Radio control, Auto Run / Auto Stop
- Fast set-up, easy to transport
Full Technical Specification Click Here
| Crusher | |
|---|---|
| Jaw box | 1000mm × 630mm (40″ × 24″) |
| Crusher speed | 280–320 rpm |
| Drive | Hydraulic, reverse crush action |
| Adjustment | Manual hydraulic |
| Jaw plates | Reversible |
| Jaw setting range | 40–120mm (1½″–4¾″) |
| Feed hopper | |
| Feeder type | Vibratory, remote control, adjustable speed |
| Feeder length | 2.9m (9.6ft) |
| Hopper capacity | 3 m³ (106 ft³) |
| Main conveyor | |
| Belt width | 900mm (2.95ft) |
| Discharge height | 2.8m (9.17ft) |
| Belt speed | 1.6 m/sec |
| Feature | Hydraulic lowering for easy access |
| Key components | |
| Engine | John Deere |
| Overband magnet | Eriez Magnets |
| Tracks | Strickland Tracks |
| Hydraulic pump | Kawasaki |
| Electronics | Siemens |
| Feeder motors | Invicta |
| Rollers | Rulmeca |

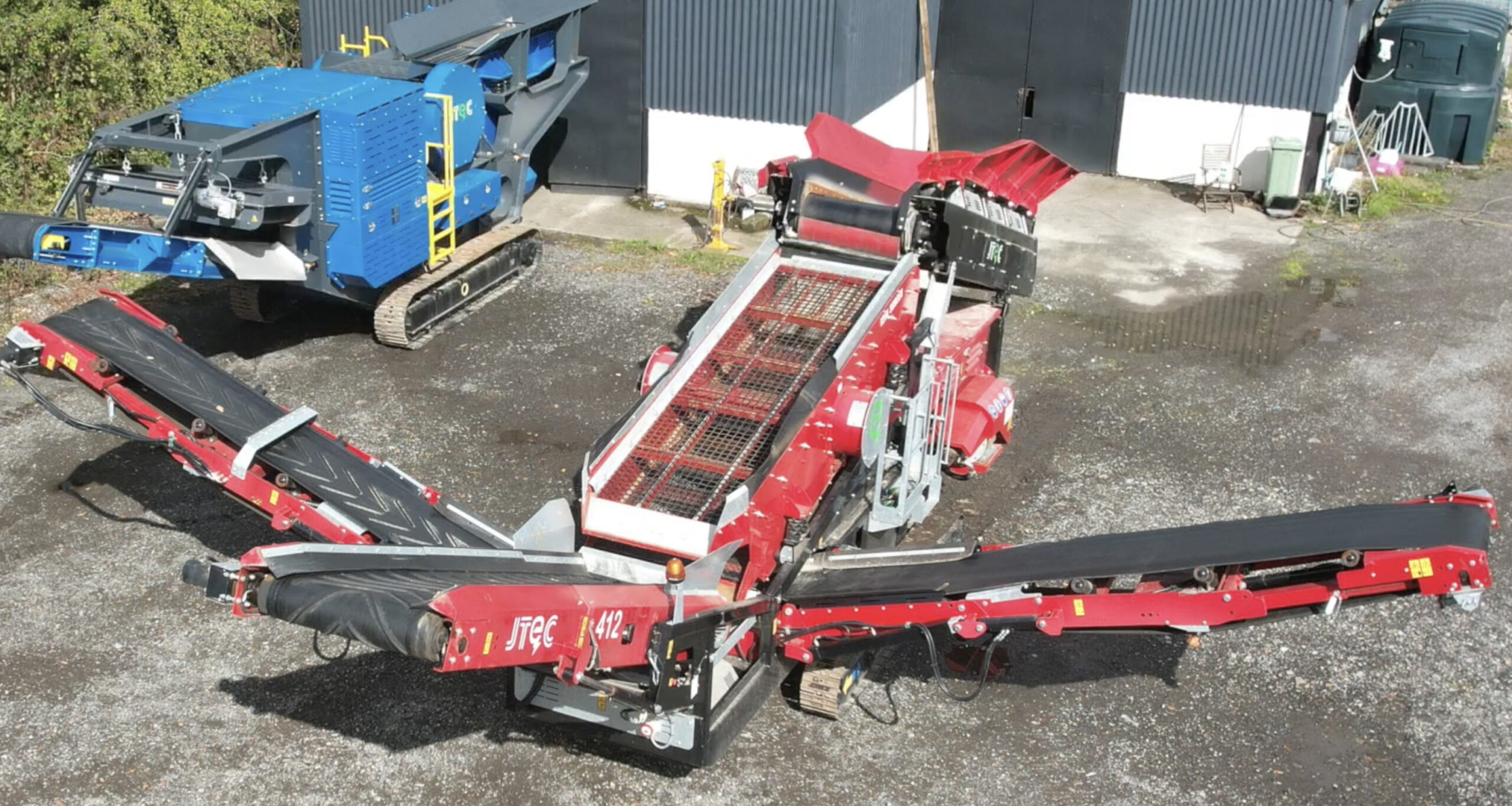

Screener412
Compact, heavy-duty tracked screener for aggregates, topsoil, compost and C&D waste. High production output, yet easy to move without permits in most countries.
- 1050mm heavy-duty feeder belt
- Telescopic extending side conveyors
- Impact bed fitted in hopper
- 1000mm chevron oversize belt
- Optional top deck grizzly fingers
Full Technical Specification Click Here
| Standard specification | |
|---|---|
| Engine | CAT C2.8, 75hp — Tier 4 / Stage V |
| Feeder belt | 1050mm heavy-duty |
| Screenbox | 3600 × 1250mm top & bottom deck |
| Side conveyors | Telescopic, extending |
| Hopper | Impact bed fitted |
| Oversize belt | 1000mm chevron |
| Fines conveyor | 1050mm collection conveyor |
| Options | Top deck grizzly fingers |
| Transport dimensions | |
| Length | 11,320 mm |
| Height | 2,587 mm |
| Width | 2,362 mm |
| Working dimensions | |
| Working length | 12,166 mm |
| Working height | 3,800 mm |
| Discharge height | 3,125 mm |
| Operating weight | 17,500 kg |

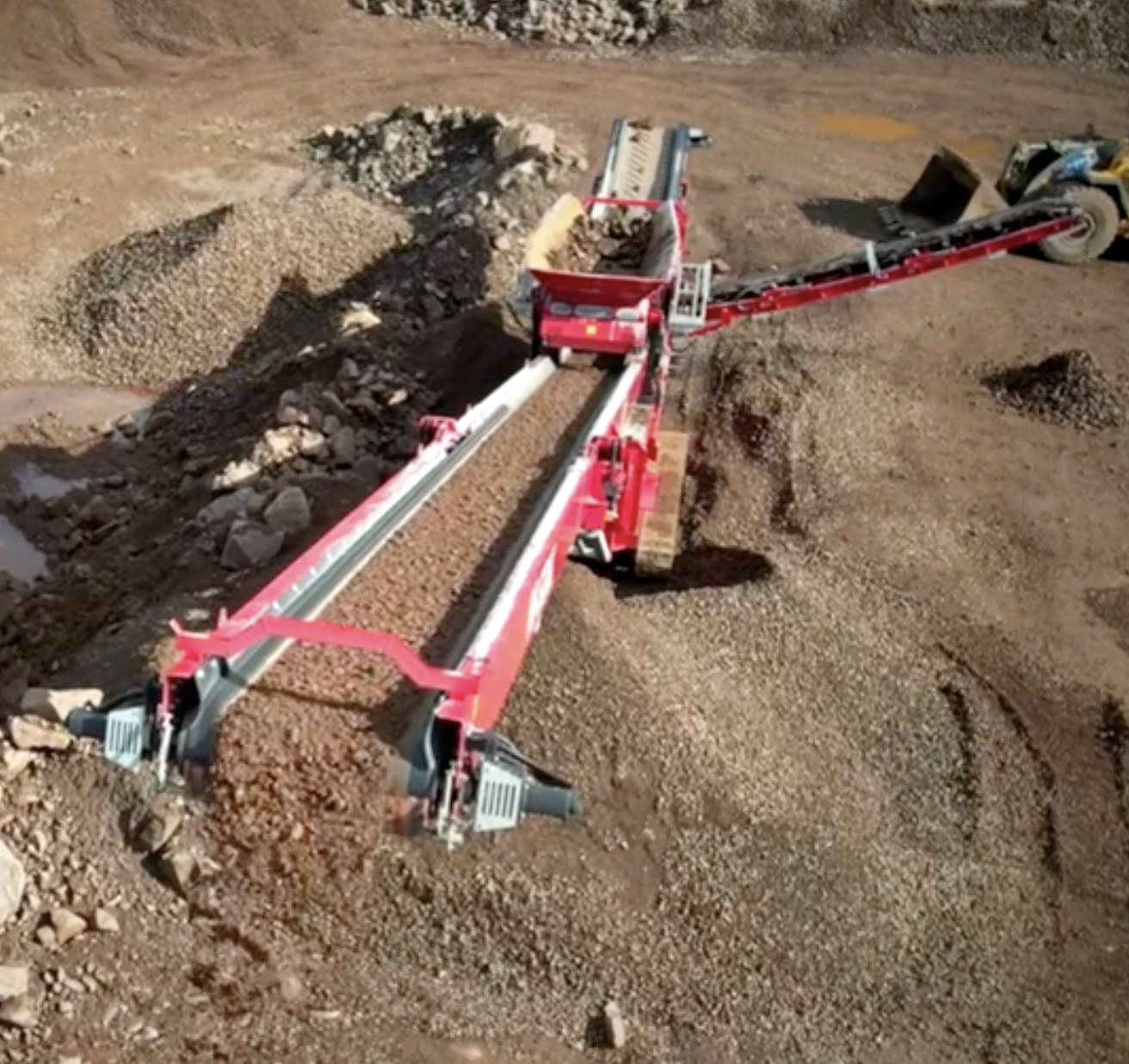

Screener SS80
The first ever tracked scalping screen and stacker combined. A big-capacity 12′ × 5′ screenbox with a 10.48m high rear stockpiling conveyor, built for all your crushing and screening needs.
- Two-deck screenbox (top & bottom)
- High rear stockpiling conveyor
- Side & front conveyors — 4.13m stockpile
- 31,000 kg transport weight
Full Technical Specification Click Here
| Technical specification | |
|---|---|
| Engine | 100 kW (104 hp) |
| Screenbox — top & bottom | 12′ × 5′ (3.658m × 1.524m) |
| Screen area | 10.36 m² (111.56 ft²) |
| Rear conveyor stockpile height | 10.48m (34.39ft) |
| Side conveyor stockpile height | 4.131m (13.55ft) |
| Front conveyor stockpile height | 4.131m (13.55ft) |
| Transport dimensions | |
| Height | 3.64m (11.94ft) |
| Length | 21.14m (69.36ft) |
| Width | 3.094m (10.15ft) |
| Weight | 31,000 kg (68,343 lbs) |
See a machine in action
Request a brochure or get a quote on any new JTEC machine.
