Stockpiles up to
10.48 m (34' 5") high.
Screen and stockpile in one pass – more in every pile, fewer moves for your loader.
Screening output varies with material and site conditions.
Screen and stockpile in one pass.

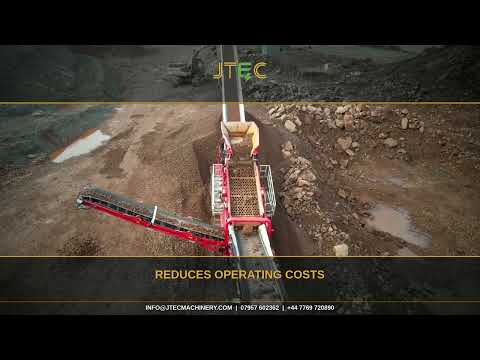

The JTEC SS80 pairs a two-deck 12' × 4' screenbox with a Hi-Stak rear conveyor that stockpiles up to 10.48 metres (34' 5") high – so each stockpile holds more and your loader moves less.
Side and front conveyors stockpile to 4.13 m (13' 7"), and because we build it by hand, we can set it up for your material and your site.
Technical specification
JTEC SS80 specs
Screenbox
- Top deck
- 3.658 × 1.219 m (12' × 4')
- Bottom deck
- 3.658 × 1.219 m (12' × 4')
- Screen area (per deck)
- 4.46 m² (48 ft²)
Stockpile heights
- Rear conveyor (Hi-Stak)
- 10.48 m (34' 5")
- Side conveyor
- 4.131 m (13' 7")
- Front conveyor
- 4.131 m (13' 7")
Power
- Engine
- 104 hp (78 kW) diesel
- Undercarriage
- Tracked
Transport
- Length
- 21.14 m (69' 4")
- Width
- 3.094 m (10' 2")
- Height
- 3.64 m (11' 11")
- Weight
- 31,000 kg (68,343 lb)
Want it all on one page? Download the spec sheet, or ask us to build it to your spec.
Output depends on material and settings. Specifications may change without notice.
