300 tonnes an hour.*
On 10 litres of diesel.*
The JTEC 1063 on a real job – not a brochure figure. Ask us and we'll show you.
*Maximum figures. Output and fuel use vary with material, feed size, jaw setting and site conditions.
Run it on diesel –
10 litres an hour.*
Or plug it in –
no diesel at all.
Serious crushing power. Seriously low running costs.

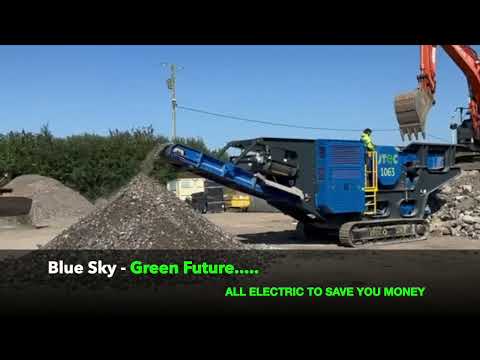

Hand-built in the UK, the JTEC 1063 crushes up to 300 tonnes an hour through its 1000 × 630 mm jaw on around 10 litres of diesel.
With Dual Power you can switch from the John Deere diesel to your own mains supply and cut running costs even further. Compact, fast to set up and easy to transport.
How much are you burning?
Put in your numbers. We’ll show you what the same hours cost on a JTEC 1063 – and how much you could save.
litres of diesel
litres of diesel at about 10 L/hr
Estimate based on the JTEC 1063 at about 10 L/hr. Real fuel use varies with material, feed size, jaw setting and site conditions.
JTEC 1063 specs
Crusher
- Jaw size
- 1000 × 630 mm (40" × 25")
- Max output
- up to 300 tph
- Jaw setting (CSS)
- 40–120 mm (1½"–4¾")
- Crusher speed
- 280–320 rpm
- Drive
- Hydraulic, reverse crush
- Adjustment
- Manual hydraulic
- Jaw plates
- Reversible
Power & fuel
- Engine
- John Deere, 4-cylinder diesel
- Dual Power
- Run on mains electric
- Fuel use
- approx. 10 L/hr (2.6 US gal)
- Controls
- Radio remote, Auto Run
Feed hopper
- Feeder
- Vibratory, variable speed
- Feeder length
- 2.9 m (9.6 ft)
- Hopper capacity
- 3 m³ (106 ft³)
Main conveyor
- Width
- 900 mm (2.95 ft)
- Discharge height
- 2.8 m (9.17 ft)
- Belt speed
- 1.6 m/sec
- Access
- Hydraulic lowering
- Also fitted
- Overband magnet, side belt
Dimensions & weight
- Transport L × W × H
- 11.42 × 2.50 × 3.27 m
- 37' 6" × 8' 2" × 10' 9"
- Working width
- 3.80 m (12' 6") with side belt
- Weight
- 28,000 kg (61,700 lb)
Key components – names you know
- Engine
- John Deere
- Hydraulic pump
- Kawasaki
- Electronics
- Siemens
- Tracks
- Strickland
- Overband magnet
- Eirez
- Feeder motors
- Invicta
- Rollers
- Rulmeca
Want it all on one page? Download the spec sheet, or ask us to build it to your spec.
Maximum figures shown. Output and fuel use vary with material type and hardness, feed size, jaw setting and site conditions. Specifications may change without notice.
